Thunder-Stroke Counter ATR 1

The ATR 1 thunder-stroke counter can be installed in all the lightning protection systems according to particular standards as a recorder intended for information of a keeper / an control subject and of other participants about number of earth-leakage currents due lightning strokes into the lightning conductor system. It serves along with consequently performed revisions of the lightning conductor for overview of an owner or keeper of a protected or a thunderstruck structure about the installed lightning conductor system.

The counter can be installed in both classic and active lightning conductor systems. This instrument shall be "inserted" into the down lead at for reading suitable point.

Basic parameters of the ATR 1 thunder-stroke counter



Type ATR 1
Range Itc: 1,6 ka (8/20)
Incw : 100 ka (10/350)
Protection class IP 65 (water-resistant)


Dimensions
Weight 292 g
Length 153 mm
Diameter 70 mm
Width 34 mm
Material Cu 8 mm



Dimmensions of the ATR 1 thunder-stroke counter

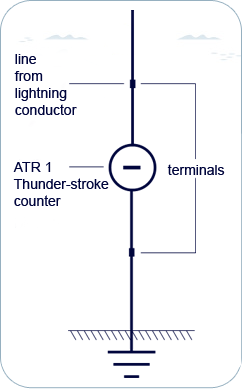

Installation of the ATR 1 thunder-stroke counter

Installation of the ATR 1 thunder-stroke counter

Prohlášení o shodě Inspekční certifikát
